ERMENRICH

The Ermenrich Zing TC20 Digital Multimeter is a portable device for measuring DC/AC voltage, DC/AC current, resistance, and capacitance. Protected against overloads, the device is reliable and stable, and provides a high accuracy of measurements. It is most suitable for those interested in radio communication, handymen, and professional electricians.

€34.00

In Stock

In Stock

Ships within 24-48 hours.
Orders received until 3 p.m. are usually shipped the same day.

Availability: In stock
SKU
LEV-82546

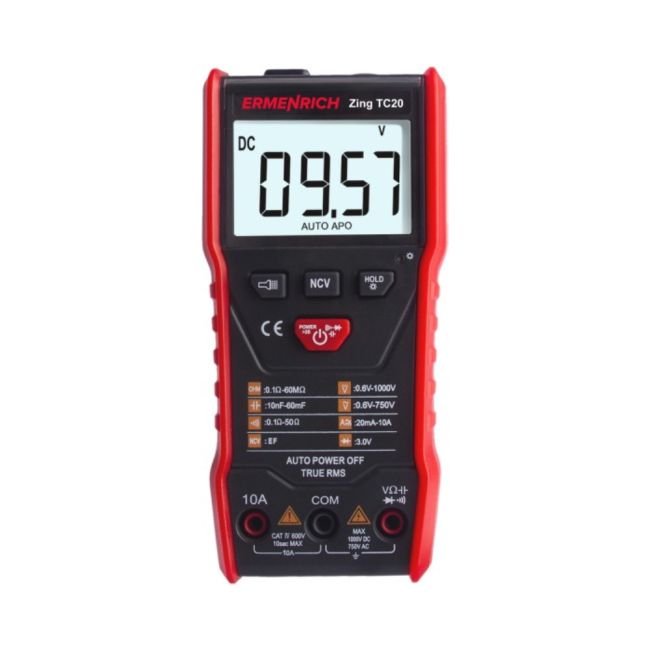

Ermenrich Zing TC20 Digital Multimeter


Features:

  • Without rotary dial, the measuring limit is set automatically
  • DC/AC voltage measurement, DC/AC current measurement, resistance, capacitance
  • Wire mapping mode, diodes test, NCV test
  • True RMS method that improves the accuracy of AC current and AC voltage measurements


The Ermenrich Zing TC20 Digital Multimeter is a portable device for measuring DC/AC voltage, DC/AC current, resistance, and capacitance. It doesn’t have a rotary switch, i.e. the measuring limit is set automatically. Protected against overloads, the device is reliable and stable, and provides a high accuracy of measurements. It is most suitable for those interested in radio communication, handymen, and professional electricians.


In the wire mapping mode, it checks the continuity of the circuit – the device locates an open or short circuit. The diodes test is used for testing diodes by measuring the voltage drop across the diodes. The device uses the True RMS method. That is, measurements are based on the True RMS formula, which improves the accuracy of results when measuring AC voltage and AC current. Additional features include a hold function, non-contact voltage detection (NCV), and a flashlight.


The device is powered by two standard batteries (not included).

  • Selection of the measuring limit: automatic
  • DC voltage measuring range: 0.6–1000V
  • DC voltage measuring limit: 6/60/600V: error ±(0.5%+3), resolution 0.001/0.01/0.1V, 1000V: error ±(0.8%+10), resolution 1V
  • AC voltage measuring range: 0.6–750V
  • AC voltage measuring limit: 6/60/600V: error ±(0.5%+3), resolution 0.001/0.01/0.1V, 750V: error ±(0.8%+10), resolution 1V
  • DC voltage measuring range: 20mA–10A
  • DC voltage measuring limit: 6/10A: error ±(2.0%+30), resolution 0.001/0.01A
  • AC voltage measuring range: 20mA–10A
  • AC voltage measuring limit: 6/10A: error ±(2.0%+30), resolution 0.001/0.01A
  • Resistance measuring range: 0.1Ohm–60MOhm
  • Resistance measuring limit: 600Ohm: error ±(0.8%+5), resolution 0.1Ohm, 6kOhm/60kOhm/600kOhm/6MOhm: error ±(0.8%+3), resolution 1Ohm/10Ohm/100Ohm/1kOhm, 60MOhm: error ±(2.5%+3), resolution 10kOhm
  • Capacity measuring limit: 10nF/100nF/1µF/10µF/100µF/1mF/10mF: error ±(3.5%+20), resolution 10pF/100pF/1nF/10nF/100nF/1µF/10µF, 60mF: error ±(5%+3), resolution 100µF
  • Measurements per second: 3
  • Wire mapping: ✓
  • Diodes test: ✓
  • Non-contact voltage detection (NCV): ✓
  • True RMS: ✓
  • Hold function: ✓
  • Overvoltage category: cat. IV
  • Display: LCD
  • Display counts: 5999
  • Display digits: 3 5/6
  • Display backlight: ✓
  • Flash light: ✓
  • Operating temperature range,°C: 0...+40
  • Power supply: 2 AAA batteries (not included)
  • Low battery status indicator: ✓
  • Auto power off: ✓
  • Package size (LxWxH): 5x18x10 cm
  • Warranty: 5 years


In the box:

  • Digital multimeter
  • Probe – 2 pcs.
  • User manual and warranty card
