PLANEWAVE
This is a Dall-Kirkham optical design with coatings that are optimized to transmit in infrared or ultra violet wavelengths.
Available within 5-14 days
This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order. As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.

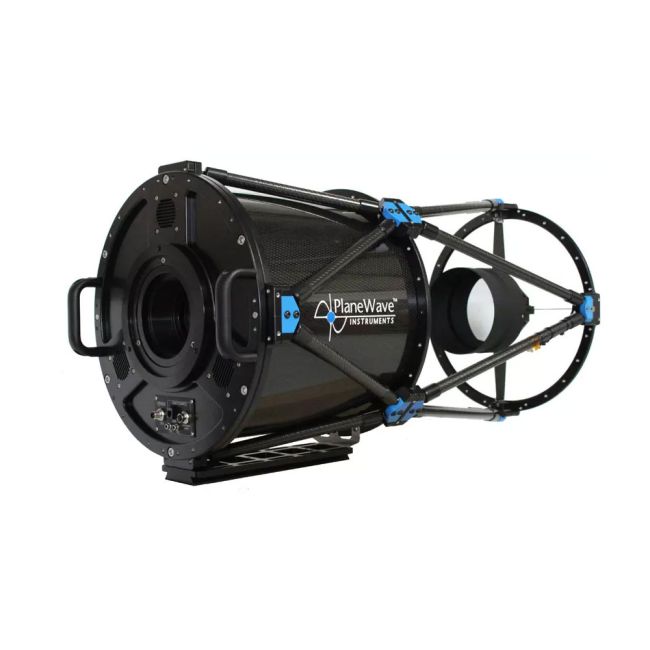

PlaneWave IRDK14 DALL-KIRKHAM F/7.2
This is a Dall-Kirkham optical design with coatings that are optimized to transmit in infrared or ultra violet wavelengths. It is diffraction limited across a 20mm image circle at the focal plane. There are no refractive lens, only reflective components to the design. For IR application, reflectives coatings are a protected gold which give better than 98% reflectivity from .65 micron (650nm) to 5 micron (5000nm). This design is ideal for infrared astronomy or LIDAR applications. UV optimized coatings can also be used at an additional cost.
The DK is available in the three different apertures 12.5 ", 14", 20", 24".
IMPORTANT:
Τhe telescope is transported from abroad, with extra costs of special packaging and shipping. These costs are related to the transport of the telescope from abroad to Greece and are irrelevant of the shipping cost within Greece. Please, contact us for the total cost.
| Net Weight (g) | 22000 |
|---|---|
| Optical design | Κατοπτρικό Dall-Kirkham |
| Aperture (mm) | 356 |
| Focal length - F (mm) | 2.563 |
| Focal ratio (f/) | 7.2 |
| Mount | Not included |
In the box:
Specifications:
Optical Design
Corrected Dall-Kirkham (CDK)
Aperture (mm)
14" (356 mm)
Focal Length
2.563 mm
Focal Ratio
f/7.2
Image Field
70 mm
Back Focus Distance
11.09" (282 mm) from Mounting Surface
Substrate
Fused Silica
Optical length
35 inch (889 mm)
Optical Tube Weight
48 lbs (22 kg)
