MAGUS
The objective is suitable for studying details of the structure of a specimen of 1µm or larger over a large field of view, e.g., for Nechiporenko urine analysis.
Available within 5-14 days
This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order. As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.

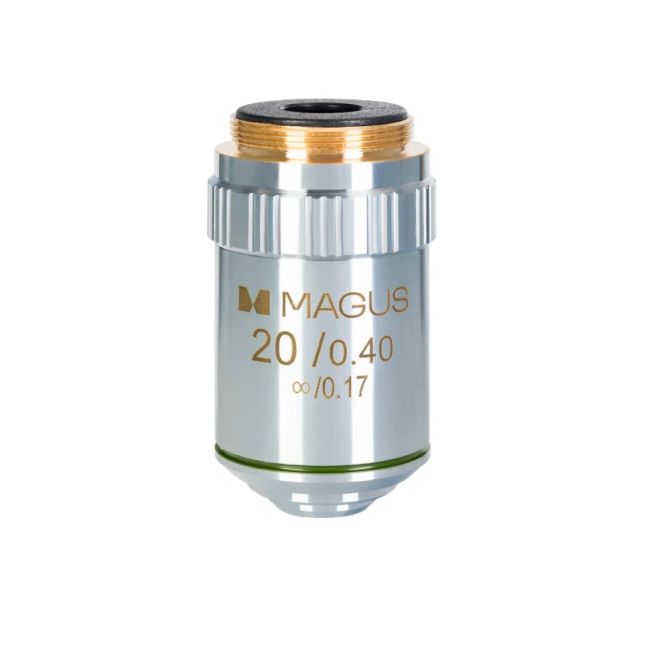

MAGUS MA20 20х/0.40 ∞/0.17 Infinity Achromatic Objective
The resolution limit of the 20x/0.40 objective is 0.69µm.
Chromatic aberrations are corrected for blue and red light, spherical aberration for green light, and field curvature for 65% of the field of view diameter.
The objective is infinity-corrected. The parfocal distance is 45mm. When observing with a 10/18mm eyepiece, the field of view diameter will be 0.9mm. The objective is designed to work with specimens with a cover glass of 0.17mm thickness.
The lower limit of the useful magnification of the microscope when observing with the 20x objective is 200x. Any magnification lower than that will not enable you to see the details of the object in the image produced by the objective.
The upper limit of useful magnification when observing with a 20x objective is 400x. Any magnification higher than that is considered useless as it does not provide new details of the specimen. We suggest using eyepieces with magnifications from 10x to 20x with the 20x/0.4 objective.
The objective is suitable for studying details of the structure of a specimen of 1µm or larger over a large field of view, e.g., for Nechiporenko urine analysis.
