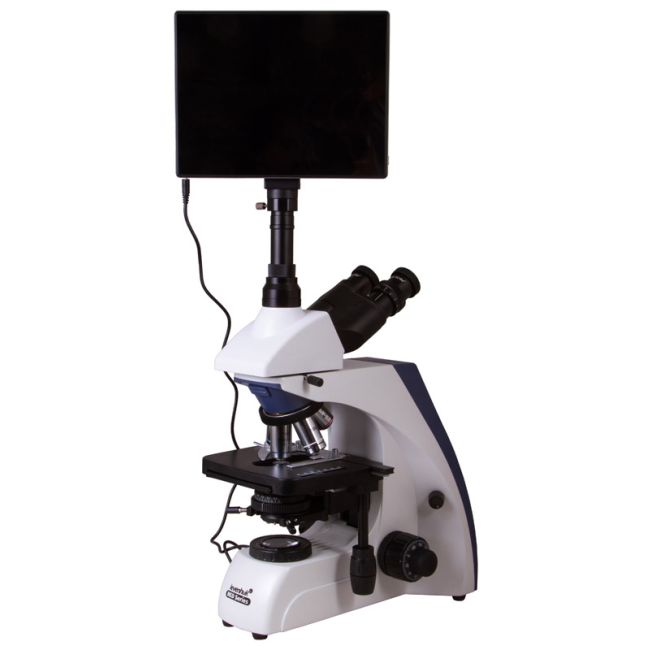

LEVENHUK MED D35T LCD DIGITAL TRINOCULAR MICROSCOPE
Features:
The Levenhuk MED D35T LCD Trinocular Digital Microscope is designed for professional micro-investigations in medicine, biochemistry, classical biology, and other scientific fields. It is perfect for a clinical diagnostic laboratory or university department. The microscope comes with a digital camera with an LCD screen, allows for setting up Köhler illumination and supports oil immersion. The microscope uses plan achromatic optics, which allow for observing at magnifications of 40x to 1000x.
The microscopes in the Levenhuk MED 35 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with high level of flatness.
One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers, epi-fluorescence light, and DIC prisms that feature minimal focus deviations and correct aberrations. All in all, modular design and simple operation make Levenhuk MED 35 optimal microscopes for using in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.
The trinocular head consists of a binocular visual unit and a vertical tube for installing a digital camera in it. The kit includes two 10x wide-field eyepieces with diopter adjustment, which are used for visual observations, and a 5MP digital camera. It does not need to be connected to a computer: an image in the objective lens is displayed on the built-in LCD screen. This LCD screen is used for setting up all of the camera options (choosing recording modes, storage spaces, etc.) and image processing. The digital camera allows for shooting videos and photos in high resolution. The camera also allows for connecting additional equipment (a keyboard, a mouse, headphones, external monitor or TV), supports memory cards and other data storage.
A revolving nosepiece allows for installing up to five objective lenses. The kit includes infinity-corrected plan achromatic objectives of various magnifications. The optics eliminate chromatic aberrations, create a flat field of view, and enhance color rendering. High-magnification objective lenses are equipped with spring-loaded frames; the 100x objective can be used for oil immersion. Coarse and fine focusing are available.
The specimens are fixed on a stage, which is equipped with a mechanical scale. The stage is moveable along two axes. Under a stage, there is an illumination unit that consists of a halogen light with brightness adjustment. There is also an Abbe condenser, which is equipped with an iris diaphragm and a filter holder. The light is powered by an AC power supply.
Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
| Zoom | 40-1000 |
|---|---|
| Objective lens 1 | 4x |
| Objective lens 2 | 10x |
| Objective lens 3 | 40xs |
| Objective lens 4 | 60xs, 100xs (oil) |
| Illumination | Halogen, adjustable |
| Micrometric Precision Focusing | Ακριβείας |
| Eyepiece | WF10x/22mm |
| Stage dimensions (mm) | 180x160 |
