LEVENHUK ΜΙΚΡΟΣΚΟΠΙΟ ΔΙΟΦΘΑΛΜΙΟ MED 25B

LEVENHUK ΜΙΚΡΟΣΚΟΠΙΟ ΔΙΟΦΘΑΛΜΙΟ MED 25B

LEVENHUK ΜΙΚΡΟΣΚΟΠΙΟ ΔΙΟΦΘΑΛΜΙΟ MED 25B

LEVENHUK

Levenhuk MED 25B Microscope is a binocular model with two condensers, a bright field and dark field one. Both condensers can be used for conducting observations using an oil immersion method.
€999.00

Available Upon Request

Available Upon Request

In this case, we do not keep the products in stock but are only available upon pre-order. As soon as we receive your order, we will notify you by e-mail or phone, about the exact delivery time.

Availability: In stock
SKU
LEV-73992


LEVENHUK MED 25B BINOCULAR MICROSCOPE


Features:

  • Binocular head
  • Plan achromatic optics provide magnification of 40x to 1000x
  • Anti-fungal coating of all the optical surfaces
  • 20W halogen light is powered by an AC power supply
  • Köhler illumination is available
  • Bright field and dark field observations are available

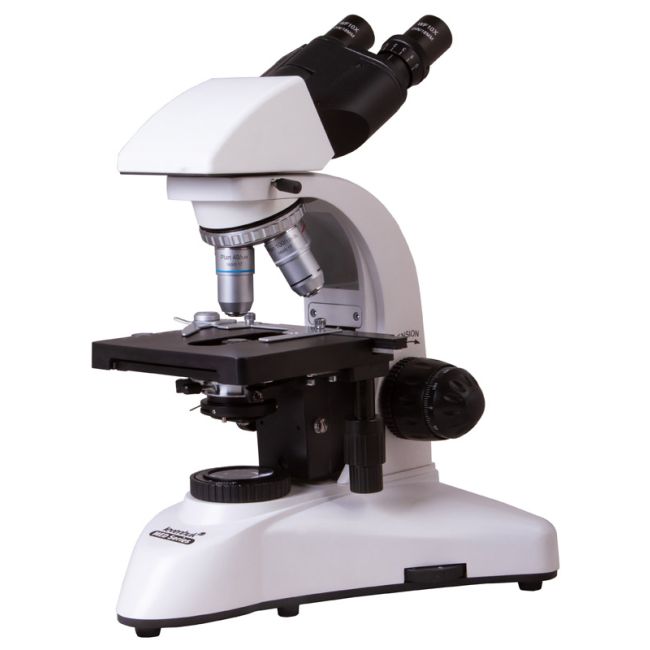

Levenhuk MED 25B Microscope is a binocular model with two condensers, a bright field and dark field one. Both condensers can be used for conducting observations using an oil immersion method. This microscope is designed for professional work in the field of medicine, microbiology, biochemistry, and other scientific fields. It can be used for research, diagnostics, or educational activities. This microscope allows for conducting observations at a magnification of up to 1000x, setting up Köhler illumination, and studying complicated detailed microstructures.

The 360° rotatable head is practical when you need to show a specimen to a colleague and moving a microscope may result in accidentally changing the optics settings. The vertical part is inclined 30°, which provides for comfortable lengthy observations. The kit includes wide-field eyepieces with 10x magnification. They have a diopter adjustment and allow for adapting the optics to individual eyesight. A revolving nosepiece contains four plan achromatic objective lenses; a 100x objective lens allows for conducting observations using oil immersion. Two objectives use protective spring-loaded frames. The optics of all the accessories has an anti-fungal coating.

The specimens are placed on a stage with the help of a mechanical scale. The double-layer stage can be moved along two axes. Sharpness adjustment is done by rotating coarse and fine focusing adjustment knobs. The mechanisms have a small pitch and extra smooth sharpness adjustment. The specimens are illuminated from below by a 20W halogen bulb. Its illumination features adjustable brightness. The light passes through an Abbe condenser with an iris diaphragm, on which you can install filters (three filters are included in the kit). Moreover, you can install a dark field condenser on a microscope. It is included in the kit as well and allows for using oil immersion.

The light is powered by an AC power supply.

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

More Information
Zoom 40-1000
Objective lens 1 4x
Objective lens 2 10x
Objective lens 3 40xs
Objective lens 4 100xs (oil)
Head 360º rotatable
Illumination Halogen, adjustable
Micrometric Precision Focusing Ακριβείας
Eyepiece WF10x/18mm
Stage dimensions (mm) 140x140
Stage type Moveable, with scale (x,y)
  • Head: binocular, rotatable 360°, inclined 30°
  • Optics material: optical glass with an anti-fungal coating
  • Eyepiece tube diameter, mm: 30
  • Revolving nosepiece: 4 objectives
  • Interpupillary distance, mm: 55–75
  • Stage moving range, using focusing mechanism, mm: 75/50
  • Eyepiece diopter adjustment, diopters: ±5
  • Condenser: Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Diaphragm: iris
  • Focus: coaxial, coarse (0.5mm) and fine (0.002mm), with rack and pinion
  • Body: metal
  • Power source: 100–240 V
  • Light source type: lower light, 6V/20W, 85–230V AC
  • Filters: blue, green, yellow
  • Additionally: collector lens, Köhler illumination, dark field condenser (oil)
  • Usage: General use product. May be used by kids over 3 years old.

In the box:

  • Microscope base with a stand
  • 360° rotatable binocular head
  • Plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with an anti-fungal coating
  • Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Dark field condenser (oil)
  • Filters: blue, green, yellow
  • Vial of immersion oil
  • Halogen light (6V/20W)
  • Fuse (2 pcs)
  • Power cord for microscope
  • Dust cover
  • User manual and lifetime warranty
