Discovery Femto Polar Microscope


Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.

We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.

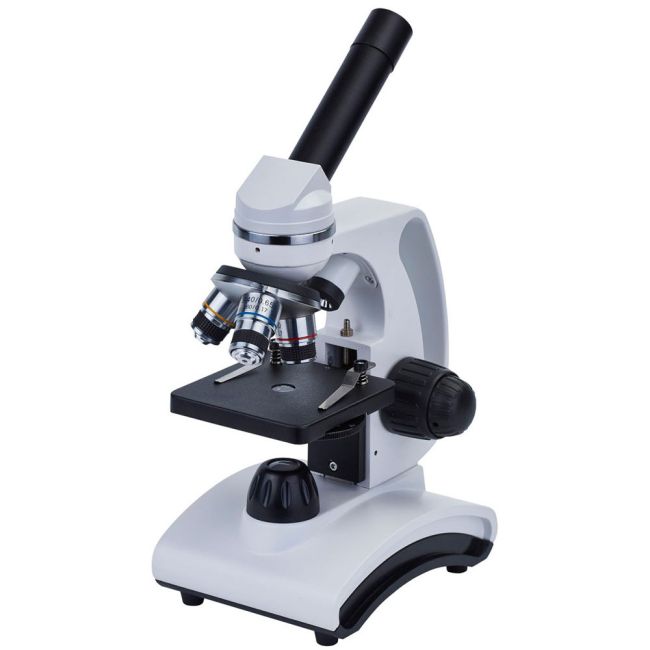

The Discovery Femto Polar is a classic, monocular microscope that enables the examination of the microbial world in transmitted and reflected light with a magnification of 40x-400x. It can show plant and insect cell structure, life in a drop of water, protozoa, and much more. The microscope is an excellent classroom assistant for conducting simple biology experiments. An informative book about the microbial world is included. It makes experiments even more interesting and diverse.

Achromatic optics enable a clear and detailed visualization of specimens. The device’s rotating head comes with three objectives: 4x, 10x, and 40x spring. The wide-field eyepiece provides clear viewing at 10x. The monocular head is inclined at an ergonomic 45° thereby making long periods of observation more comfortable. In addition, the head rotates 360 degrees above the horizontal plane, which is great for group experiments. The microscope doesn’t require moving to share an image with a partner as the head can be turned accordingly. It comes equipped with separate coarse and fine focusing knobs, thereby making the adjustment of the resolution smoother.

The illumination system consists of upper and lower LED illumination with brightness adjustment. The lower light enters through the disc diaphragm which also helps control brightness. The device can be powered by batteries (not included in kit) or plug-in (AC adapter included in kit). The stage comes equipped with clips for fixating slides.

The book entitled "The Invisible World" is a fascinating compliment to the microscope. It reveals the microbial world and scientific experiments. It is written with easy to understand language and vivid illustrations. Historical facts about microscopy and microorganisms are provided as well as experiments that can be conducted in a home setting using the Discovery Femto Polar microscope.

Features:

  • Biological, 40x to 400x magnification.
  • Monocular, rotating head 45° inclined
  • Achromatic objectives, wide-field eyepiece, precise focusing
  • Brightness adjustment, AC or battery powered
  • Stage with clips, metal body
  • Illustrated knowledge book included in kit
      More Information
      Zoom 40-400
      Objective lens 1 4x
      Objective lens 2 10x
      Objective lens 3 40xs
      Head 360º rotatable, inclined at 45º
      Illumination LED
      Micrometric Precision Focusing Yes
      Eyepiece WF10x
      Stage dimensions (mm) 90x90 mm, με ελάσματα

      In the box:

      • One microscope
      • One eyepiece WF10x
      • Three achromatic objectives 4x, 10x, 40x
      • One AC adapter with power cord
      • One dust cover
      • One illustrated knowledge book, "The Invisible World"
      • User manual and warranty card

      Specifications:

      Type

      compound/optical, biological

      Head

      monocular, rotatable 360°, inclined 45°

      Optics material

      optical glass

      Eyepiece tube diameter, mm

      23,2

      Objectives

      achromatic: 4x, 10x, 40x

      Revolving nosepiece

      3 objectives

      Stage, mm

      90x90mm with stage clips

      Stage moving range, using focusing mechanism, mm

      0–10mm

      Condenser

      N.A. 0.65

      Diaphragm

      disc diaphragm (6 holes)

      Focus

      coaxial, coarse (0.5mm) and fine (0.002mm)

      Body

      metal

      Power source

      3 AA batteries (included in kit) or 110-240V AC adapter (included in kit)

      Light source type

      lower: 0.2W; upper 0.1W

      Operating temperature range, °C
      °F

      +5 to +40

      Additionally

      LED dimmer

      Usage

      General use product.
      May be used by kids over 3 years old.

      User level

      beginner

      Assembly and setup

      extremely simple

      Application

      School Research, Kid’s Education

      Illumination location

      combined

      Research method

      bright field
