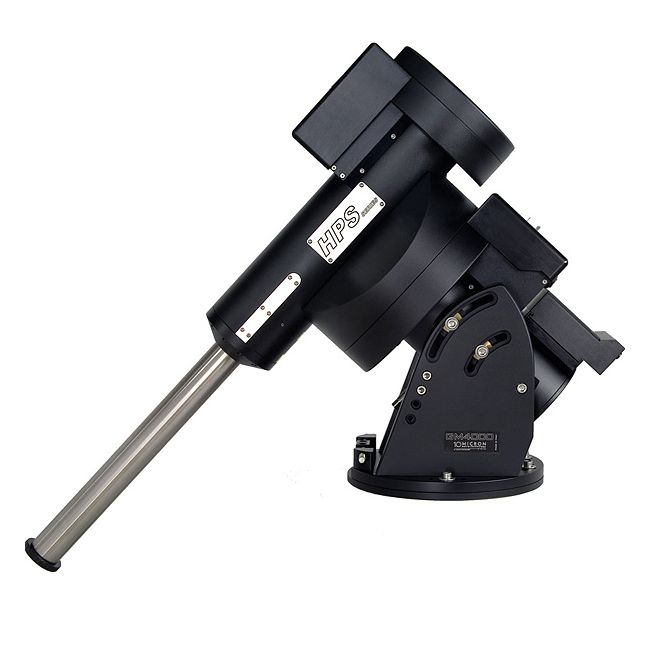

GM 4000 HPS II Equatorial Mount Head

HPS stands for High Precision and Speed and the mount is a further development of the known GM2000 QCI of 10micron with the same proven mechanics but less capacity than this – and thus easier to transport.

• Premium materials and processing for high quality and durability.
• No casting parts, all pieces are CNC-milled.
• High-precision traditional worm-wheel drives and clutches for thebest reliability.
• Internal wiring – no external mount cables.
• High torque brushless servo motors, maintanence free, allowing a pointing speed of up to 20°/s (GM 2000).
• Proprietary motor drive electronic board for easy servicing.

• Closed loop system with on-axis encoders feedback.
• Absolute encoders directly mounted on both RA & Dec axes, featuring < 0.1 arcsec readout error, fully encapsulated and factory calibrated.
• Extremely low power consumption and micro format (20 x 15 x 8cm) electronics.
• Control box and keypad can be easily detached and safely stored after your observations – for a better protection of the electronic components or for servicing, no need to return your mount!
• Premium quality electric and electronic components for use in a wide range of operational temperatures.
• Virtual Keypad tool on PC available for remote control.

• Stand alone control unit – no PC required – includes all necessary functions for field use
• Rugged keypad with metal body and reliable industrial grade micro switches
• Large graphic display with up to five text lines and status icon, heated for low temperature operation, dimmable display and keyboard with LED backlit keys

• Powerful firmware featuring advanced mount modeling, with several parameters computation (refraction, optical/mechanical flexures, leap second, mount orientation, object motion, clock synchronization, temperature etc.) and special functions (dual tracking, assisted polar alignment procedure etc.): the only way for perfect unguided tracking during long exposures (up to 0.6" RMS accuracy).
• Intuitively operated system, proprietary motor controller with temperature compensated clock, onboard industrial grade Linux computer – intelligence built-in.
• No external PC or laptop mandatory in the field – all functions in the onboard computer can be operated via stand-alone hand control unit (Keypad).
• Precise multistar pointing model, suitable for applications such as high precision spectroscopy, TLE manager for satellite tracking, orbital parameters management for minor planets and comets, individual observing sessions management and much more.
• Stable pointing models for safe East/West load reversal – recordable models database for different telescope setups and accessories configuration.
• Precise and fast polar alignment procedure, managed by the internal software and executable in minutes.
• Fully remote controlled via your observatory PC through 10/100/1000 LAN or WiFi, thanks to a well documented command protocol and drivers, via custom software or standard planetarium software.
• Manual-, Automatic- (ClockSync proprietary software) or GPSbased time; leap second support and full computation of the UT1/ UTC timescales.
• Electronic balance feature.
• Remote diagnostics web assist option with. dedicated server.

• The Price does not include the counterwights and the power supply unit, these must be ordered in addition.
  To avoid loss of warranty, only power supplies approved by us from our price list may be used.
• When purchasing a 10Micron mount, the heavy transport box #1453100 is mandatory.
