Flatmaster 250 provides a uniform source of illumination for up to 10-inch telescopes and produces high-quality flat field frames for astrophotography and photometric captures.

€425.00

Available within 5-14 days

Available within 5-14 days

This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order. As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.

Availability: In stock
SKU
PEG-FLTMSTR250L


Flatmaster 250 - Dimable Led Flat Panel (for telescopes up to10'')

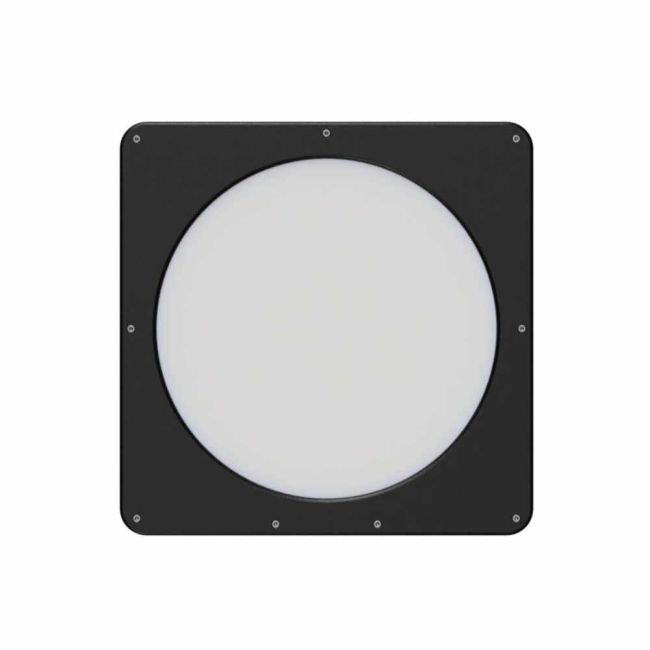

This is the updated version of the Pegasus Astro FlatMaster 250L, their bigger, slimline, flatfield panel. It provides a uniform source of illumination for up to 10-inch telescopes and produces high-quality flat field frames for astrophotography and photometric captures.


Dimmable Panel

Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.

The Flatmaster 250L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters.


Manual Button

The FlatMaster has a small push button that sets different gradual levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.


One cable operation

Only one cable (USB) is required to provide power and control of your flatpanel.


Unity Platform support

Unity Platform allows you to set filter names and store/retrieve brightness levels of your FlatMaster panel.


ASCOM and INDI support

FlatMaster 250L supports the latest ASCOM and INDI framework.


Native support with popular imaging software

FlatMaster is supported by popular imaging software suites:

  • Sequence Generator Pro (SGPro)
  • Voyager Astrophotography Automation
  • Astrophotography Tool (APT)
  • Nighttime Imaging 'N' Astronomy (N.I.N.A)
More Information
Net Weight (g) 840
  • Type: Led Light Panel (White)
  • Dimmable: Yes – (0-100%)
  • Material: Strong black ABS plastic
  • Manual Push Button: On each click applies a different brightness level
  • Usable diameter of circle: 250mm / 10 inches
  • Power requirements: 5V DC provided by USB mini cable (500mA max)
  • Size: Diameter 250mm x 8mm thickness


In the box:

  • FlatMaster 250L (suitable for any telescope with apperture up to 250mm or 10 inches)
  • Cable USB2 Type B 1.8m
