TS Filter wheel for 5x 1.25" filters - short back focus - with T2 and 1.25" adaptation

Available within 5-14 days

Available within 5-14 days

This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order. As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.

Availability: In stock
SKU
TSFIRA1

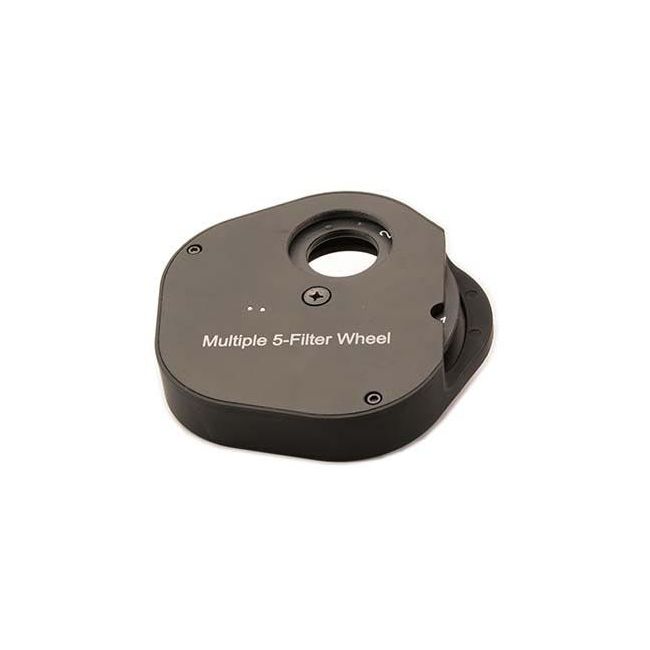

TS Filter wheel for 5x 1.25" filters - short back focus - with T2 and 1.25" adaptation
... for fast and secure filter change - optimal for astro imaging and visual observation

The TS filter wheel (5x 1.25") is suitable for both visual observation and imaging. DIt features a solid aluminium body. Even with heavier cameras or eyepieces, there's no bending or tilting. Every filter position is mechanically indexed.

Advantages at a glance:
-- filters are kept safely against dust and scratches
-- filter change within a second without touching the camera or other parts of the setup
-- versatile T2 thread on the telescope side and both T2 and 1.25" receptacles on the camera/eyepiece side
-- easy to equip with filters
-- absolutely (stray-)lightproof
-- solid design - completely machined metal

Eyepiece side connection / fields of use:

filter wheel
Visual:
The filter wheel accepts all 1.25" eyepieces and can therefore be used directly for visual observation. Equip it e.g. with color filters and see different filter effects directly on the planets. Or use UHC, O[III] and H-beta filters for deep sky observation and you have immediately the correct filter for Planetary Nebulae, other Nebulae and general observation.

Astro imaging:
The TS filter wheel comes with T2 connection allowing a solid screwed solution within your imaging train. A counter ring allows fine back focus adjustments when a corrector is used. From the T2 thread, we offer all adaptations to other systems.

Equipping the wheel is easy and straightforward:

Loosen both screws on the non-labelled side and the central Philips screw. Now you can lift off the upper part.

Technical details:
-- Telescope side connection: T2 (M42x0.75) female
-- Camera/eyepiece side connection: T2 female, T2 male, 1.25" receptacle
-- Body back focus: 22.7 mm
-- T2 adapter back focus: 5...7 mm

Scope of delivery:
-- TS filter wheel for 5x 1.25" filters
-- Adapter to 1.25"
-- Adapater to T2 male with counter ring
-- T2 screw cover
