The Takahashi FC-76DCU apochromatic refractor is equipped with a fluorite doublet at F/7.5. Its very low weight, only 1.9 kg for the tube alone, makes it a very portable instrument, usable on a simple photo tripod.
Available Upon Request
This category includes products which are not kept in stock and for some reasons -which don’t depend on our company- can’t be available in less than 14 days. Specifically, this category includes new products thar are pre-advertised by manufacturers, however they are not available in Greece yet. You can pre-order these items with a special preferential price. If the estimated arrival date of this product is already known, then the estimated date will be written above the indication “AVAILABLE UPON REQUEST”.

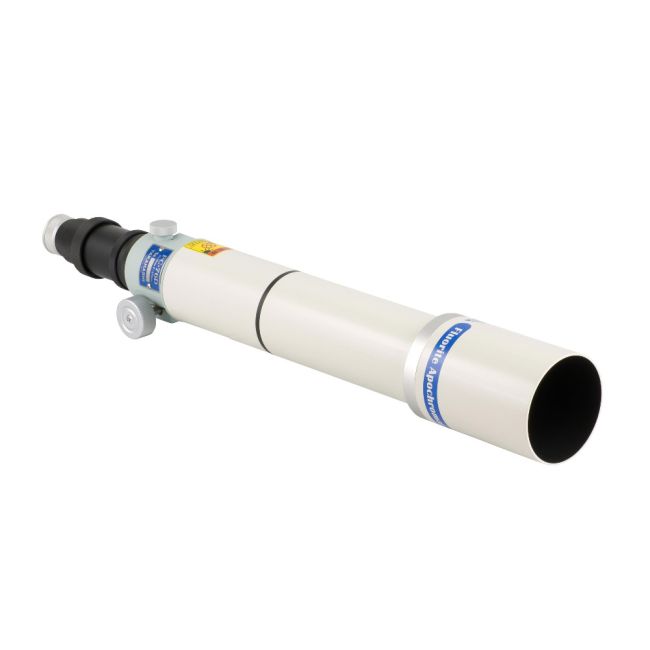

FC-76DCU (OTA) WITH 31.75 ADAPTER (FIXED DEW SHIELD)
The Takahashi FC-76DCU apochromatic refractor is equipped with a fluorite doublet at F/7.5. Its very low weight, only 1.9 kg for the tube alone, makes it a very portable instrument, usable on a simple photo tripod. It comes with a fixed dew shield and a 31.75 mm compact rack-and-pinion focuser inherited from the FS-60CB. A brake locks the focus and it is possible to add an optional Camera Angle Adjuster (CAA) to make it easier to frame the picture.
The FC-76DCU can be equipped with a focal reducer (76D-RD) or with a field corrector (76D-FL or multi-flattener FC/FS MFL1.04X) for deep sky imaging.
The 80 mm diameter tube is in 2 parts. It can receive the Extender 1.7XR from the FS-60Q, which increases the F/D ratio from 7.5 to 12.75. The focal length gain then allows optimal chromatic correction for unforgettable planetary observations.
For FS-60CB owners, there is a conversion kit available to convert this refractor to FC-76DCU.
| Net Weight (g) | 1900 |
|---|---|
| Optical design | Apochromatic Refractor |
| Aperture (mm) | 76 |
| Focal length - F (mm) | 570 |
| Focal ratio (f/) | 7.5 |
| Mount | Not included |
| Maximum useful magnification (x) | 152 |
| Characteristic | Takahashi FC-76DCU refractor |
| Objective | Fluorite doublet apochromat |
| Lens cell | Air-spaced doublet. Fluorite in the back. |
| Coatings | Hard multicoatings |
| Length of the optical tube | 656 mm (with dew-shield) |
| Diameter of the optical tube | 80 mm |
| Diamètre of the dew-shield | 80 mm |
| Focuser | Rack-and-pinion |
| At prime focus | |
| Focal ratio | 570 mm |
| Focal ratio | F/7.5 |
| Metal Back Distance | 159 mm |
| With FC/FS MFL1.04X field corrector | |
| Focal length | 589 mm |
| Focal ratio | F/7.8 |
| Image circle diameter | 44 mm |
| Metal Back Distance | 85.2 mm |
| With 76D RD focal reducer | |
| Focal length | 417 mm |
| Focal ratio | F/5.5 |
| Image circle diameter | 36 mm |
| Metal Back Distance | 56.2 mm |
| With EX-Q1.6X focal extender | |
| Focal length | 916 mm |
| Focal ratio | F/12 |
| Metal Back Distance | 157 mm |
| With 1.7XR focal extender | |
| Focal length | 969 mm |
| Focal ratio | F/12.8 |
Spot-diagram of the Takahashi FC-76DS refractor at prime focus
Spot-diagram of the Takahashi FC-76DS refractor with FC/FS MFL1.04X field corrector
Spot-diagram of the Takahashi FC-76DS refractor with 76D-RD focal reducer
