EVOLUX 62ED ΧΩΡΙΣ FLATTENER (OTA)

EVOLUX 62ED ΧΩΡΙΣ FLATTENER (OTA)

EVOLUX 62ED ΧΩΡΙΣ FLATTENER (OTA)

SKYWATCHER

Building on the foundation of the popular Evostar line of doublet ED refractors, Sky-Watcher has developed the all-new Evolux ED series. Designed for the discerning astrophotographer looking for a lightweight scope that still packs a punch. Naturally, Evolux ED models offer excellent performance for visual use too.

Available Upon Request

Available Upon Request

In this case, we do not keep the products in stock but are only available upon pre-order. As soon as we receive your order, we will notify you by e-mail or phone, about the exact delivery time.

Availability: In stock
SKU
OV-10196

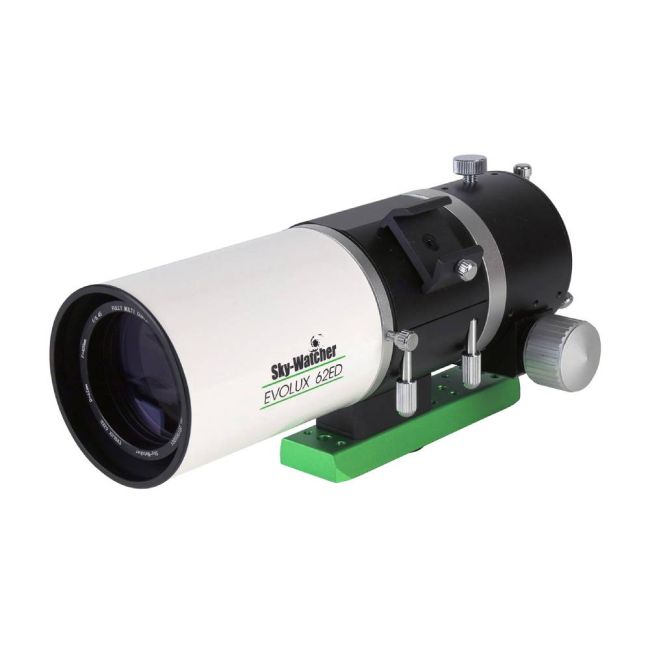

EVOLUX 62ED (OTA)

Features:

    • 62mm diameter
    • New ED (Extra-low-dispersion) glass
    • New 2-element lens design
    • Focal length=400mm / f = 6.5
    • Focal length = 360mm / f=5.8 with optional dedicated reducer/flattener for wider field of view
    • Net Weight: 2.5kg
    • Retractable dewshield for compact handling and storage
    • High precision new 61mm (2.4″) dual-speed focuser
    • Aluminium hard case



    ELEGANT DESIGN - NEXT GENERATION PERFORMANCE

    Building on the foundation of the popular Evostar line of doublet ED refractors, Sky-Watcher has developed the all-new Evolux ED series. Designed for the discerning astrophotographer looking for a lightweight scope that still packs a punch. Naturally, Evolux ED models offer excellent performance for visual use too.

    Evolux ED models have key upgrades in the optics and the mechanics, making them the perfect fit for a widefield grab-and-go setup. Evolux ED apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability.

    The doublet lens assembly utilises a proprietary combination of optically matched lenses, including one ED lens element, that delivers sharp stars with charcoal-black, contrast-rich skies, whilst virtually eliminating false colour.

    All lens elements feature Sky-Watcher's proprietary Metallic High-Transmission Coatings™ (MHTC™) which are the finest photon anti-rejection coatings in their class, optimising light throughput to up to 99.5%!

    The Evolux-62ED can also be used as a deluxe guidescope. The Evolux-62ED comes in a foam-lined aluminum case with a 2.4-inch 11:1 dual-speed rack-and-pinion focuser, 45mm dovetail bar, clamshell ring, and adjustable dew shield.

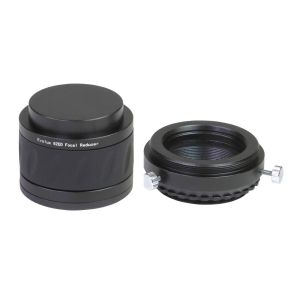

    An optional 0.9x two-element focal reducer/field flattener, which includes one ED lens element and adaptor/field rotator is available separately, which when combined makes the Evolux-62ED into a four-lens optical system comprising two ED elements!

      More Information
      Net Weight (g) 2500
      Optical design Apochromatic Refractor
      Aperture (mm) 62
      Focal length - F (mm) 400
      Focal ratio (f/) 6.45
      Mount Not included
      Maximum useful magnification (x) 124
      Box 1 440 x 330 x 280 mm
      • Optical design:Fully Multi-Coated
      • Focal Length with optional 0.9x Reducer/Flattener: 360mm
      • Focal Ratio with optional 0.9x Reducer/Flattener: f/5.8
      • Field of View with optional 0.9x Reducer/Flattener: 5.09°
      • Dual-Speed  2.4” Rack & Pinion Focuser with Indexed Drawtube
      • Tube Length Retracted/Extended: 295mm/370mm
