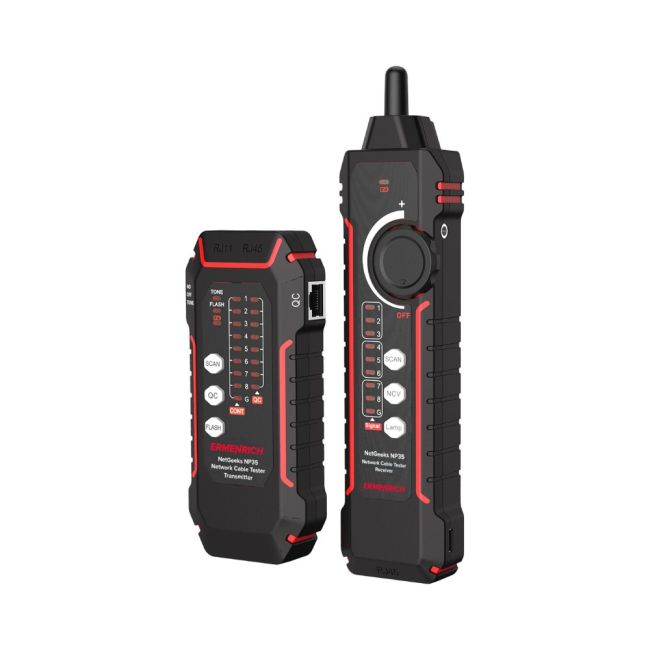

Ermenrich NetGeeks NP35 Network Cable Tester

Ermenrich NetGeeks NP35 Network Cable Tester

Ermenrich NetGeeks NP35 Network Cable Tester

ERMENRICH

The Ermenrich NetGeeks NP35 tester is designed for testing and tracing cables. It enables you to identify installation errors or faults in network and low-current systems: short circuits, open circuits, crossed pairs. The Port Flash function can quickly identify the network port to which the tested table is connected.

€84.00

Available within 5-14 days

Available within 5-14 days

This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order. As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.

Availability: In stock
SKU
LEV-82547


Ermenrich NetGeeks NP35 Network Cable Tester


Features:

  • Tester for tracing and testing network cables
  • Cable testing, Port Flash for port detection
  • Cable crystal head QC, telephone line condition test, voltage polarity detection
  • Powered by a rechargeable battery, option to connect earbuds


The Ermenrich NetGeeks NP35 tester is designed for testing and tracing cables. It enables you to identify installation errors or faults in network and low-current systems: short circuits, open circuits, crossed pairs. The Port Flash function can quickly identify the network port to which the tested table is connected. There are other features: a cable crystal head QC and a telephone line status test.


The Ermenrich NetGeeks NP35 tester consists of a transmitter and a receiver, both powered by rechargeable batteries. The receiver has an adjustable sensitivity and can safely locate the source of voltage (outlets, cables, machinery). The receiver is equipped with a flashlight for comfortable operation in dark areas as well as earbuds that can be connected to the receiver to avoid excessive external noise.


The device supports STP/UTP (CAT5, CAT6) network cables and telephone cables. It can be used for both home and professional use.

Transmitter

  • Ports: USB 2.0 (C type), RJ45, RJ11, QC
  • Testing cable types: STP/UTP (CAT5, CAT6) network cable
  • Maximum length of the tested cable, m (ft): 600 (1970)
  • Сable crystal head QC: ✓
  • Cable tracing: ✓
  • Crosstalk protection: ✓
  • Voltage polarity detection: ✓

Key features

  • Power supply: 1400 mAh, 3.7V lithium polymer battery, charging via a USB Type-C cable (included)
  • Low battery status indicator: ✓
  • Operating temperature range,°C: –10… +40 (14… 104)
  • Operating humidity range, %: 20…70

Receiver / Remote unit

  • Ports: USB 2.0 (C type), RJ45, earbuds
  • Adjustable sensitivity: ✓
  • Non-contact voltage detection (NCV): ✓
  • Flash light: ✓
  • Power supply: 1400 mAh, 3.7V lithium polymer battery, charging via a USB Type-C cable (included)
  • Operating temperature range,°C: –10… +40 (14… 104)
  • Operating humidity range, %: 20…70


In the box:

  • Transmitter
  • Receiver
  • RJ11 patch cord
  • RJ45 patch cord
  • Alligator clip
  • DC cable
  • Earbuds
  • Type-C USB cable
  • User manual and warranty card
