TAKAHASHI
Cradles are the standard tube rings for fixing Takahashi optical tube assemblies to the mounts. Footprints of the cradles are adapted to the heads of the Takahashi mounts.
Available Upon Request
This category includes products which are not kept in stock and for some reasons -which don’t depend on our company- can’t be available in less than 14 days. Specifically, this category includes new products thar are pre-advertised by manufacturers, however they are not available in Greece yet. You can pre-order these items with a special preferential price. If the estimated arrival date of this product is already known, then the estimated date will be written above the indication “AVAILABLE UPON REQUEST”.

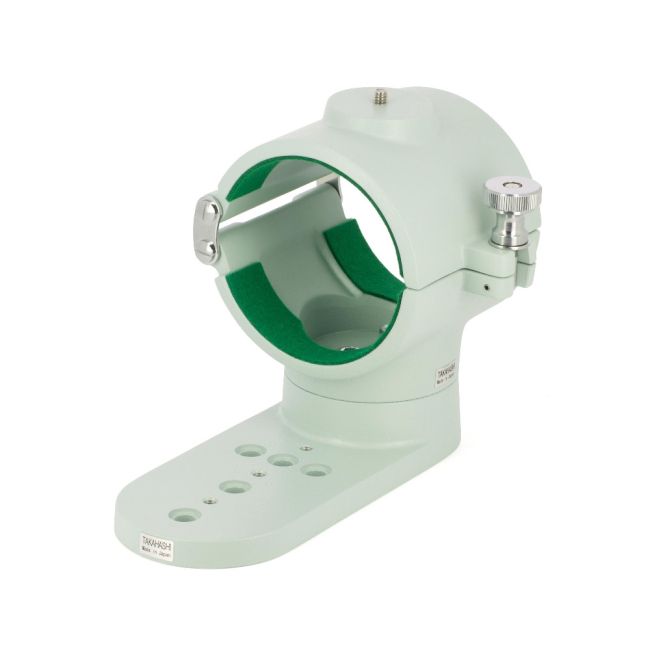

CRADLE FOR FSQ-85EDX WITH OFF-SET PLATE
Cradles are the standard tube rings for fixing Takahashi optical tube assemblies to the mounts. Footprints of the cradles are adapted to the heads of the Takahashi mounts. They are systematically provided with two 8.8 mm diameter holes; they are fixed to the Takahashi mounts by means of 2 M8 screws, delivered with cradles. The top of the cradle has a small flat surface with a 1/4"-20tpi screw (Kodak). It is possible to attach a camera to it in parallel.
Takahashi cradles are made of cast aluminium. The finishing of each one is done manually. Felt parts ensure the protection of the optical tube.
As on the Takahashi FSQ-106ED and because of its Petzval type optical formula, the FSQ-85EDX has an oversized cell which receives the lenses of the triplet. The whole assembly is heavy and causes a significant weight shift towards the front of the refractor that conventional tube rings, combined with the short optical tube, make impossible to balance on a mount. To move the center of gravity towards the back, Takahashi thus conceived an offset plate specific to the cradle (ref. TKA21420) and the symmetrical cradle (ref. TKA21420G) of the FSQ-85EDX.
The balancing plate is compatible with Takahashi EM-200 mount.
Footprints of top plate and rings of the Takahashi 95S cradle (FC-100)
Diagram of the balancing plate for 95S cradle
| Net Weight (g) | 800 |
|---|
