BAADER PLANETARIUM

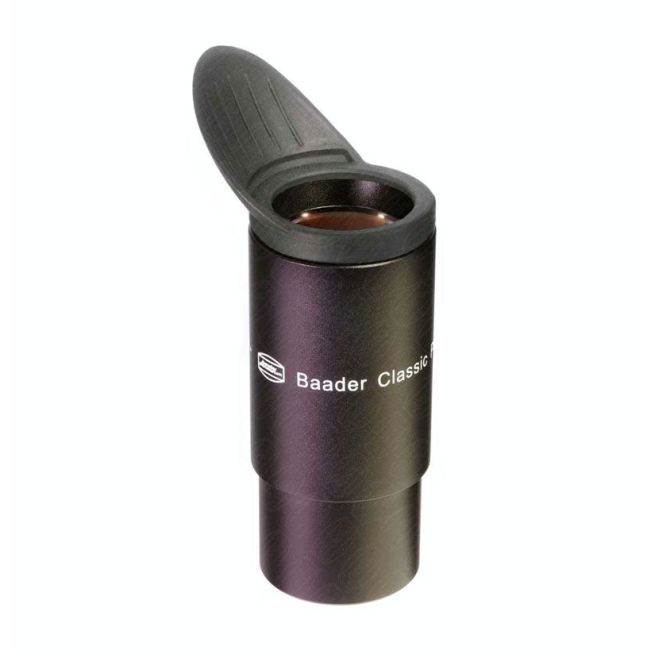

Parfocal eyepieces with a very high transmission, very good contrast and thus a very clear field of view, free of distortions.
Temporarily Out Of Stock
Ships within 3-14 days.
In this case there is currently zero availability of these items which we usually keep in stock. However, it is very likely that these items are available in the distribution centers in Europe of the manufacturers with whom we cooperate or of our other suppliers and thus we can immediately replace a product that has run out. If we know in advance that the delivery time for temporarily out-of-stock products exceeds 14 days, then we will notify you by e-mail or telephone.
Features:
Parfocal eyepieces with a very high transmission, very good contrast and thus a very clear field of view, free of distortions. The multi-coating eliminates almost all internal reflections. The eyepieces provide 50° apparent field (6/10/18mm Ortho), sharp field stops and excellent ergonomics for comfortable observing.
The lens assembly consists of a triplet-element and one plano-convex eye lens, so there are only four glass-air-surfaces. The interior has been blackened for a very good suppression of stray light. Of course, the hard anodised barrel has got a filter thread.
Looking into the eyepieces, you'll see the effect of the anti-relex-coating and the blackened lens edges. The coating is so good that it seems like there are no lenses at all! On our optical bench, we couldn't find any disadvantages compared to so-called "planetary eyepieces" which cost five times more.
The eyepieces use the same glasses and the same optical design as the old orthoscopic Zeiss Jena eyepieces.
The 32mm-Plössl-eyepiece is the perfect eyepiece for a large field of view at telescopes with 1,25"-focuser; eyepieces with longer focal lengths don't provide a larger field of view (but a smaller apparent field).
Aperture (mm) | 31.8 |
---|---|
Type | Plössl |
Eye Relief (mm) | 21 |
Eyepiece diameter | 1,1/4" (31,8mm) |
Focal length | 32 |
Field of view (FOVº) | 50° |
