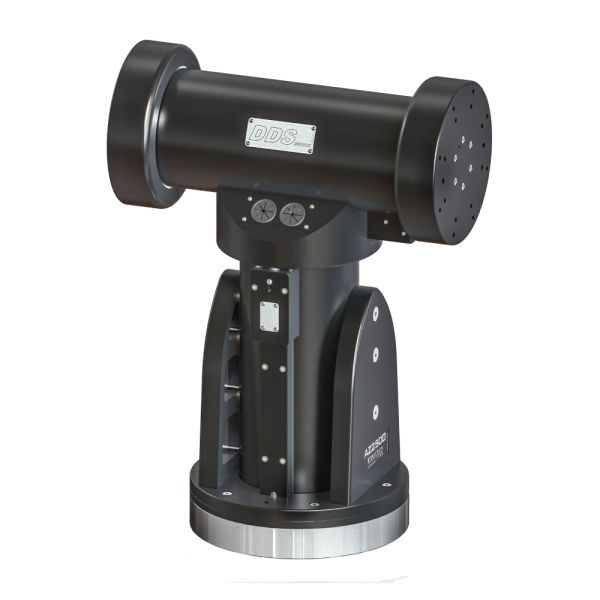

AZ 2500 DDS

10MICRON

This direct-drive mount is designed to provide exceptional performance, including high pointing speed and excellent tracking accuracy. It is particularly well-suited for applications such as satellite tracking, laser communication, astronomy, and atmospheric research.

Available Upon Request

Availability: In stock

SKU

BA-1456250

Details

AZ 2500 DDS

The AZ 2500 DDS (Direct Drive System) mount is one of 10Microns latest project. A new computerized altazimuth mount with software integrated derotator/focuser.

The AZ DDS mounts integrate all the latest technologies and technical acquirements in mechanical, electrical, electronics, software and design fields: any single feature and component has been accurately studied in order to reach the highest level of efficiency that has always characterized 10Micron products. For over 20 years, 10Micron has been a leader in the field of telescope mounts. Their products are selected by astronomical observatories, universities, and companies worldwide for their technology, quality, and reliability.

The mount is designed for the use of two optics (75 + 75 kg), which optimizes the load on the mount and takes advantage of the azimuthal design.

Ask our team for any customized configuration.

Professional Graphic Display Included

Stand alone control unit – no PC required – includes all necessary functions for field use
Rugged keypad with metal body and reliable industrial grade micro switches
Large graphic display with up to five text lines and status icon, heated for low temperature operation, dimmable display and keyboard with LED backlit keys
Altazimuthal configuration with optional derotator/focuser,
Suitable for dual telescope configuration (75kg + 75 kg instrument payload capacity)
High-torque direct-drive motors
Ultra-high-resolution absolute encoders
Premium-quality bearings
Exceptionally rigid and compact body for optimal stability
Rapid pointing speed of up to 40°/sec
Highly accurate tracking capabilities
Stand-alone operation with included keypad
Optional software for automated modeling
Optimized for satellite and space debris tracking
Integrated focuser and derotator controls
Comprehensive selection of original accessories

More Information

More Information
Net Weight (g)	76000

Additional Features

Specifications

Name: AZ 2500 DDS
Mount type: Alt-azimuth (Equatorial optional)
Weight: 76 kg
Instrument payload capacity: 75 Kg + 75 Kg (dual telescope configuration)
Axes bearing: Premium quality large diameter, high precision bearings
Motors: Professional grade direct drive motors; no worm gears or transmission systems, zero backlash
Encoders: High Resolution absolute encoders, industrial grade
Power supply: 48 V
Power consumption: 10 A peak
Goto speed: more than 40°/s
Pointing accuracy: <10" RMS with internal 25 stars software mapping, max 100 stars. Automatic modeling software available
Average tracking accuracy: 1" typical for 15 minutes / 0.6“ RMS with internal 25-stars model (real sky observation)
Safety features: Mechanical stops in both axis, Anti-wrap logic, Unbalance protection system
Security brakes: AZ +/- 235 and Alt: -100° .. +100°
Dimensions: 460 x 288 x 669 mm
Focuser / DeRotator standard: GO1 by 10Micron. 10Micron specific, software integrated control, internal temperature probe: GO-0 and GO-1 by 10Micron. 12.5kg (0) / 25kg (1) payload capacity
Keypad control: Rugged keypad with metal housing, backlit micro switches, dimmable graphic display. All the functionality of the mount is available through the keypad without requiring an external PC.
