LEVENHUK

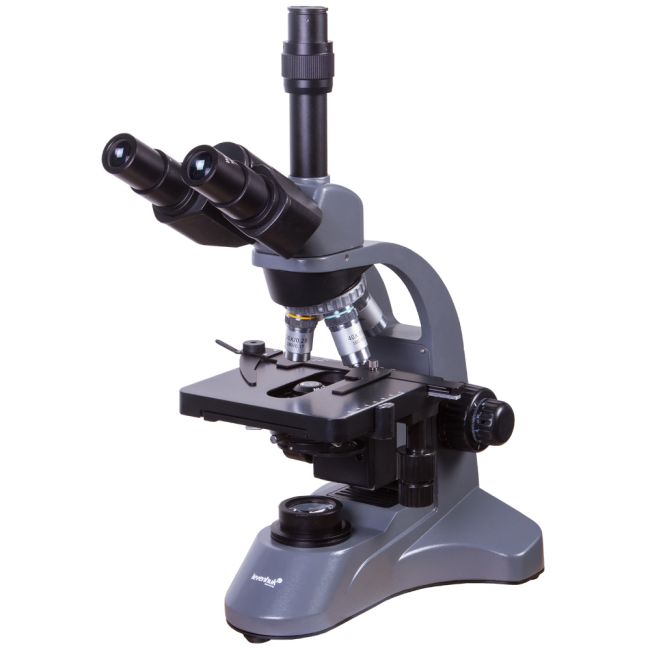

Levenhuk 740T Microscope – trinocular microscope, which enables you to carry out classic biological studies and employ modern technology in your observations.

€569.00

In Stock

In Stock

Ships within 24-48 hours.
Orders received until 3 p.m. are usually shipped the same day.

Availability: In stock
SKU
LEV-69657


740T TRINOCULAR MICROSCOPE

Features:

  • Revolving nosepiece for 4 objectives
  • Oil immersion
  • Abbe condenser with iris diaphragm and filter
  • Trinocular head
  • Ability to connect a digital camera (not included)
  • Magnification: from 40x to 2000x
  • Metal body
  • Illumination with adjustable brightness
  • Convenient stage that moves vertically and horizontally
  • Coaxial coarse and fine focusing mechanism

Levenhuk 740T Microscope – trinocular microscope, which enables you to carry out classic biological studies and employ modern technology in your observations. Trinocular head allows you to install any digital camera adapted to the 23.2mm eyepiece tube.

The microscope is equipped with lower illumination – that means you can observe only transparent microscope samples. The intensity of light is adjustable over a wide range. An Abbe condenser repeatedly amplifies the light beam and directs it exactly on the area of research. The microscope allows for observations in the bright field mode. It also allows using the oil immersion method.

The revolving nosepiece is designed to accommodate four objective lenses. Combining them with interchangeable eyepieces of different magnification, you can obtain a wide range of fixed magnification in the 40x-2000x range. All eyepieces that come in the kit are paired.

Trinocular head is inclined at 45° and rotates 360° around its axis. This is especially convenient for group work, when you need to let a wide audience access the observed samples – just turn the microscope head, instead of moving the whole instrument.

Samples are fixed on the stage using two convenient metal clips. The stage itself moves vertically and horizontally, allowing you to accurately determine the area of research and focus on a small part of the sample. The focusing mechanism allows for fine and coarse sharpness adjustment. Most amateur microscope models lack this useful feature.

The microscope comes with a special dust cover for convenient storage of the instrument.

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220-240V in most European countries.

More Information
Zoom 40-2000
Objective lens 1 4x
Objective lens 2 10x,
Objective lens 3 40xs
Objective lens 4 100xs (καταδυτικός)
Head 360º rotatable, inclined at 45º
Illumination LED
Micrometric Precision Focusing Ακριβείας
Eyepiece WF10x/18mm, WFH20x
Stage dimensions (mm) 140x130mm, με μηχανική κλίμακα και μεταλλικά ελάσματα
Box 1 490 x 400 x 270 mm ( 5.68 Kg )
  • Optics material: optical glass
  • Eyepiece tube diameter, mm: 23.2
  • Stage moving range, using focusing mechanism, mm: vertically: 24mm & horizontally: 75mm
  • Eyepiece diopter adjustment, diopters: ±6
  • Condenser: Abbe N.A. 1.25
  • Diaphragm: iris
  • Focus: coaxial, coarse: 22mm & fine: 0.002mm
  • Body: aluminum
  • Brightness adjustment: yes
  • Power source: 110 V/50 Hz
  • Light source type: LED 3W
  • Filters: blue, yellow, green
  • Additionally: eyepiece tube length: 160mm
  • Usage: General use product. May be used by kids over 3 years old.
  • Application: Lab Research

In the box:

  • Microscope stand with base
  • Trinocular head
  • Achromatic objective lenses: 4x, 10x, 40xs, and 100xs (oil)
  • Eyepieces: WF10x and WFH20x
  • Filters (blue, yellow, green)
  • Bottle of immersion oil
  • Dust cover
  • AC adapter
  • Allen key
  • Spare fuse
  • User manual
  • Lifetime warranty
