CAMERA ASI071MC Pro (color)



071Pro1071pro logo

Camera Sensor

▶IMX071

071Pro3

  • Most famous sensor of Sony
  • APS-C(1.8″) Diagonal 28.4mm
  • 16M Pixel (4944×3284)
  • Very low read noise: 2.3e @24db gain 3.3e @lowest gain
  • 14Bit ADC: provide real 14bit Dynamic range
  • Electronic shutter: no vibration problem with mechanical shutter

DDR Memory Buffer

ASI071MC Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

DDR buffer

DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.

Astrophotography Performance

ASI071MC Pro offers very good performance for astrophotography. Low read noise, high dynamic range.

071Pro Gain RN DR FW vs gain(1)

Dark Current

The Dark Current of ASI071MC Pro is better controled than before with the help of  DDR buffer and new improvment of hardware design



071Pro DC vs TQE Curve

We suppose the QE peak value is more than 50%.

Relative QE curve

asi071-qe

Unique Tilt Adapter

ASI071 Pro includes unique tilt adapter. Say goodbye to tilt problems forever !ASI094-tilt-adapter-3mm

USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI071MC Pro to run at 10 fps (14bit, normal mode) at full resolution(16Mega).

USB 2.0 HUB: Can connect with various accessories,  including a filter wheel, guide camera or electronic focuser, allowing you to manage your cables better. There are two short 0.5m USB2.0 cables included with the ASI071 Pro. The hub is powered by the external power supply if you connect one.



071Pro2

New mechnical design and Anti-Dew Heater

The ASI071MC-PRO camera comes with a completely upgraded anti-dew and mechanical body.

The diameter of the camera body is incresed to 86mm (ASI071MC-Cool is 78mm).

▶6 screws seal the chamber

This new structure seal the CMOS chamber better.

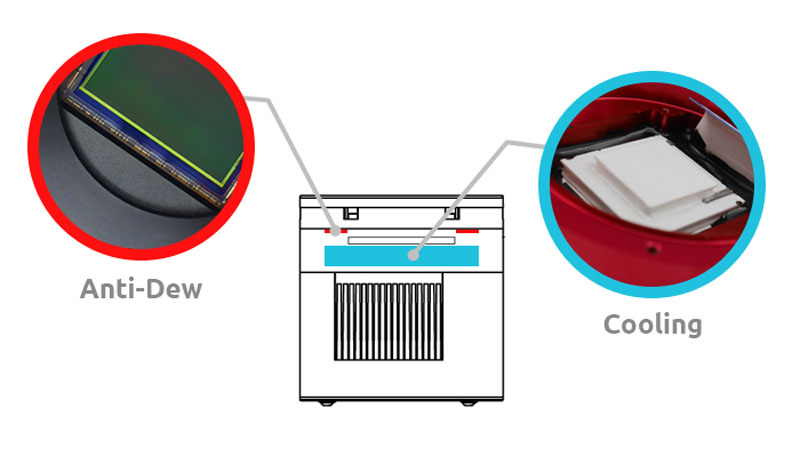

▶anti-dew and cooling system

ASI071MC Pro has a two-stage TEC cooling system that allows deep cooling (35°C-40°C below ambient). You will need an external power supply to power the cooler. An AC-DC power adapter is not included in this package

We recommend using a 12V/3-5A or more DC adapter for cooler power supply (2.1×5.5, center positive).
Using a battery with 9-15V is also suitable for the cooler power supply.

The anti-dew heater will heat the AR protect window to avoid any dew problems. The heat anti-dew heater power is around 3.6W and can be turn off  in software to save power.

asi094-cooling-antidew

Connecting Diagram

071-cool-camera-deepsky-assemble2017

  1. 2”Filter (optional)
  2. EOS-T2 adapter
  3. M42 to M48 extender 16.5mm
  4. M42 extender 21mm
  5. Focal reducer
  6. OAG

Mechanical Diagram

asi071pro-Mechanical-Drawing



Notice:Cooled cameras need a 12v power adapter, If you don’t have one, please click this link to buy a 12V power adapter. There are 4 different standard for different contury, please choose it carefully.



The best solution of 55mm back focus length

Cooled Color Camera solution(APS-C)

Τεχνικά Χαρακτηριστικά
Καθ.Βάρος (γρ.) 640

What is in the box?
